Schema constructie cablu SCART, semnificatie legaturi pini

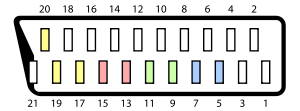

Mufa mama privita din fata

Pin 1 Audio output (right)
Pin 2 Audio input (right)
Pin 3 Audio output (left/mono)
Pin 4 Audio ground
Pin 5 RGB Blue ground (pin 7 ground)
Pin 6 Audio input (left/mono)
Pin 7 RGB Blue up
S-Video C down1)
Component Pb up
2)
Pin 8 Status & Aspect Ratio up3)
  • 00.4V → off
  • 58V → 16:9
  • 9.512V → on/4:3
Pin 9 RGB Green ground (pin 11 ground)
Pin 10 Clock / Data 24)
Control bus (AV.link)
Pin 11 RGB Green up
Component Y up
2)
Pin 12 Reserved / Data 14)
Pin 13 RGB Red ground (pin 15 ground)
Pin 14 Data signal ground (pins 8, 10 & 12 ground)
Pin 15 RGB Red up
S-Video C up
Component Pr up
2)
Pin 16 Blanking signal up
RGB-selection voltage up
  • 00.4V → composite
  • 13V → RGB
Pin 17 Composite video ground (pin 19 & 20 ground)
Pin 18 Blanking signal ground (pin 16 ground)
Pin 19 Composite video output
S-Video Y output
Pin 20 Composite video input
S-Video Y input
Pin 21 Shell/Chassis
